| Nom De Marque: | HX Fiber |
| Model Number: | La valeur maximale de l'échantillon doit être égale ou supérieure à: |
| MOQ: | 1000 mètres |

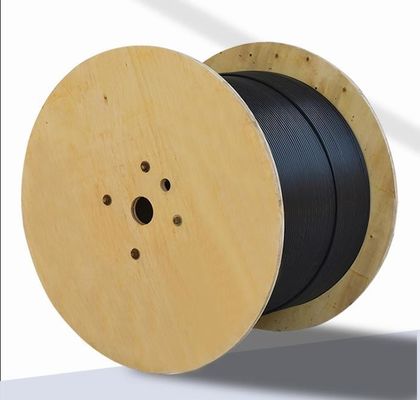

| Détails De L'emballage: | 1 km/tambour ou 2 km/tambour emballés avec du bois |
| Conditions De Paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Item
|
Value
|
|
Type
|
Outdoor/Indoor Fiber Optic Cable
|
|
Place of Origin
|
Guangdong CHINA
|
|
Brand
|
OEM
|
|
Number of Conductors
|
≥ 1
|
|
Product name
|

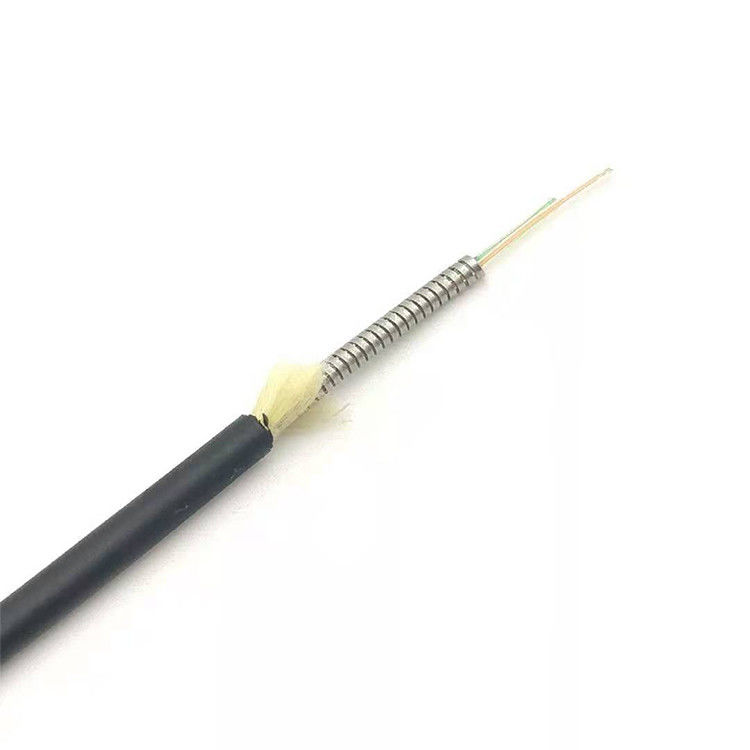

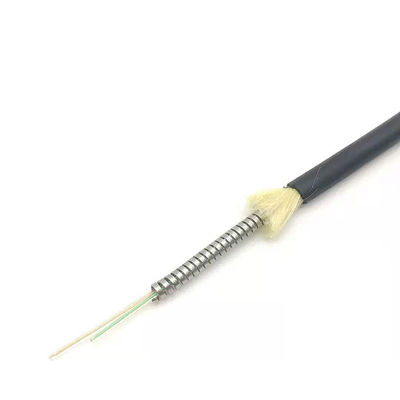

Steel Armored fiber optic cable
|
|
Application
|
FTTH, LAN,Data Center,CATV,
|
|
Fiber
|
9/125um, 62.5/125um, 50/125um,
|
|
Cable OD.
|
3.0mm/4.0mm/5.0mm
|
|
HS CODE
|
8544700000
|
|

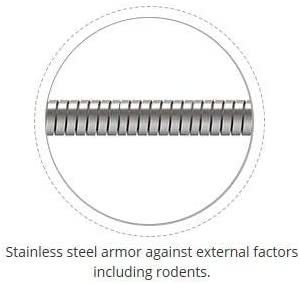

Armored
|
Spiral steel armored protected
|
|
Mode
|
Singlemode ,MultiMode
|
|
SM / MM
|
G.652D, G.657A1 or G.657A2 ,OM1,OM2,OM3,OM4, OM5
|
|
Metal Braiding
|
Stainless steel
|
|
Tensile
|
Kevlar
|
|
Temperature(°C)
|
-20~+75°C
|
|
Cable loss(db/km)
|
1310nm ≦0.35 ; 1550nm ≦0.25
|
|
Tensile(N)
|
Long Term: 300N ; Short Term : 500N
|
|
Bending Radius(mm)
|
Dynamic 20D, Static 10D
|
|
|
