| Nom De Marque: | HXFiber |
| Numéro De Modèle: | Le câble HX-Patch-03 |
| MOQ: | 100 pièces |
| Prix: | negotiable |
| Détails De L'emballage: | 1 pcs dans 1 sac en plastique avec carton |

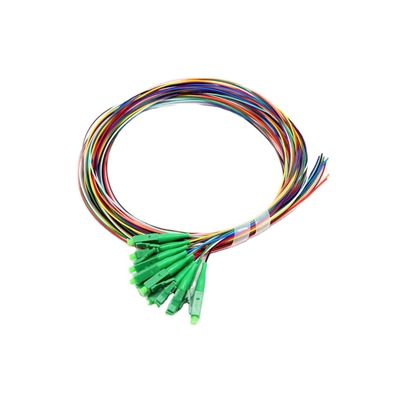

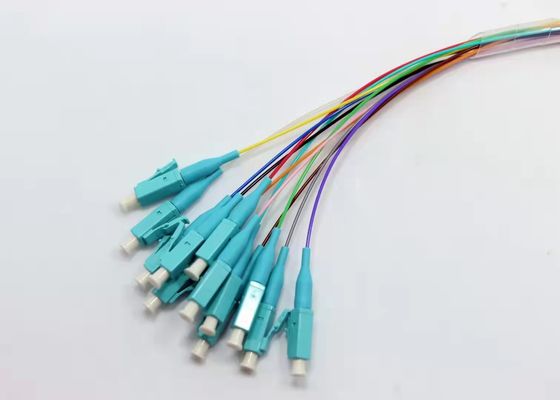

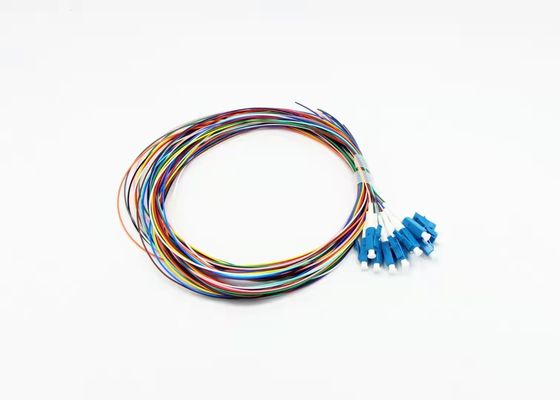

Customized 12 Color Fiber Cores LC Fiber Pigtails with 0.9mm Cable Diameter and 10
|
Connector Type
|
LC/APC
|
Jacket OD
|
0.9mm,2.0mm,3.0mm
|
|
Fiber Mode
|
9/125μm
|
Jacket Color
|
12 colors
|
|
Polish Type
|
APC to APC
|
Wavelength
|
1310/1550nm
|
|
Fiber Count
|
12
|
Jacket Material
|
PVC/LSZH
|
|
Insertion loss
|
≤0.3dB
|
Interchangeability
|
≤0.2dB
|
|
Return loss
|
≥55dB
|
Vibration
|
≤0.2dB
|
|
Operating temperature
|
-40~75°C
|
Storage temperature
|
-45~85°C
|
|
Length
|
2/5/10/15/20m/100m customized length
|
delivery date
|
3-7days according the quantity
|
|
|
